Infrastructure
Infrastructure projects are exposed to chloride and water infiltration, environmental stress, and heavy traffic loads that can lead to structural damage over time. Alchemco’s TechCrete Technology, featuring TechCrete 2500 and BridgeDeck Waterproofing Agent, penetrates deep into the concrete to form a durable subsurface membrane. This advanced waterproofing solution protects against moisture intrusion, chloride penetration, corrosion, and freeze-thaw cycles, ensuring the structure remains durable for its designed life without the need for frequent maintenance or reapplication.
Proven Protection: Project Profiles & Case Studies
-
![ETHOS CLASSICAL CHARTER SCHOOL]()

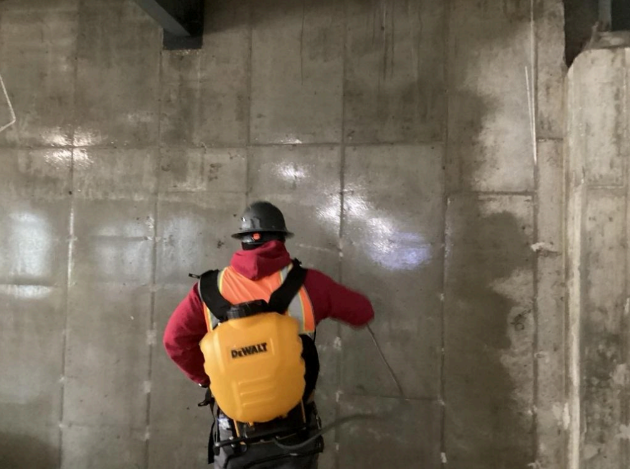

ETHOS CLASSICAL CHARTER SCHOOL
The TechCrete 2500 Waterproofing System was applied to the interior surface of the building’s south wall, creating a subsurface barrier that effectively prevented water migration without disrupting the existing landscaping.
-
![BROWARD HEALTH MEDICAL CENTER]()
BROWARD HEALTH MEDICAL CENTER
185,000 sq. ft. health center in Southeast Florida applied the waterproofing to prevent condensation and mold growth beneath a raised concrete slab, ensuring long-term protection while meeting strict environmental standards.
-
![BMW DISTRIBUTION CENTER]()
BMW DISTRIBUTION CENTER
BMW's 161,000 sq. ft. warehouse and covered parking facilities required durable waterproofing for the roof and car park areas, leading to the selection of the TechCrete 2500 Waterproofing System, which ensured long-term protection and kept the project on schedule.
-
![PRMI BUILDING]()
PRMI BUILDING
10,000 sq. ft. PRMI Building project focused on waterproofing below-grade walls, concrete planters, and an exposed balcony deck while maintaining the construction schedule.
-
![CLUB SPACE]()
CLUB SPACE
The project required stopping groundwater from seeping through below-grade walls due to faulty exterior waterproofing, successfully achieved using the TechCrete 2500 Waterproofing System and DuraTite Mlastic.
-
![GLOBAL IMPORTS BMW]()
GLOBAL IMPORTS BMW
The 47,000 sq. ft. Global Imports BMW Dealership parking decks, including a two-level deck above the showroom, were waterproofed to provide long-term protection, preventing leaks while minimizing disruption to operations.
-
![Custom Home Garage]()
CUSTOM HOME GARAGE
In June 2023, a custom home with a garage built over occupied space was waterproofed to protect the high-end showroom below and ensure proper drainage on the hillside site. No leaks or issues have been reported.
-
![ALBERTO BRAGLIA SOCCER STADIUM]()
ALBERTO BRAGLIA SOCCER STADIUM
The 150,000 sq. ft. FC Modena stadium, built in 1936, underwent repairs in 2010, including concrete seating protection, where a long-lasting waterproofing solution was applied to prevent deterioration and reduce maintenance needs.
-
![BRISTOL MOTOR SPEEDWAY]()
BRISTOL MOTOR SPEEDWAY
A 12,000 sq. ft. precast concrete tunnel and retaining wall at a raceway were waterproofed to ensure long-term protection against water damage, allowing for efficient project completion within days while maintaining access between the grandstands and infield.
From Challenge to Solution: View Our Cases
VS.
Concrete Overlays for Below Grade & Interior - Polymer Based
-
Epoxy overlays are the most common overlay system in the U.S.
They are two-component systems, consisting of epoxy resin and a curing/hardening agent.
Known for their high bond strength and low shrinkage.
Often, no primer is needed if the concrete deck is properly cleaned and prepped.
Applied using a multiple-layer method, also called the broom-and-seed method.
Typically, 2-3 layers of epoxy are applied.
Aggregate (small particles) is spread on each layer as per the manufacturer's guidelines.
After each layer cures, unbound aggregate is removed before applying the next layer.
-
Two-component systems with polyester-styrene resin and organic peroxide as the initiator for curing.
Polyester overlays are usually applied using the premix method.
The material is screeded to grade for even application.
Fine aggregate is spread on the surface for initial skid resistance.
These systems generally require a primer on the bridge deck before applying the overlay.
-
Two-component systems with methyl methacrylate resin and a small amount of organic peroxide as the curing initiator.
Methacrylate overlays are usually applied using the slurry method, mixed with aggregates.
Both the bridge deck and aggregate must be completely dry due to the system’s sensitivity to moisture.
Methacrylate top-coats are available to help bond/encapsulate the aggregate.
Common chemistries used include Poly Methyl Methacrylate (PMMA) and Polyurethane Methacrylate (PUMA).
VS.
Concrete Sealers for Below Grade & Interior - Penetrants
-
- Concrete deck sealers are spray-applied liquids designed to cover the entire bridge deck, not just cracks.
- The most commonly used chemistries are Silanes and Siloxanes.
- These sealers penetrate the concrete surface and act as a water repellent (hydrophobic).
- They do not qualify as waterproofing products.
- They cannot seal existing or future cracks.
-
- Silane sealers penetrate concrete but may not be ideal for enhancing and fully protecting surfaces.
- They create a hydrophobic barrier, but their effectiveness is limited in harsh weather conditions.
- Issues like water penetration, freeze-thaw damage, and stains can still occur.
- While they offer some protection, they may not meet expectations for comprehensive or visually pleasing solutions.
-
- Siloxane sealers are known for their water-repellent properties, but their effectiveness is limited.
- They provide only partial protection against water intrusion, which can lead to cracks, pitting, and weakened structural integrity.
- These sealers often perform poorly in areas with heavy rain or constant moisture exposure.
- Durability is a concern, as siloxane sealers typically need frequent reapplication.
- Over time, the protective barrier fades, leaving concrete decks vulnerable to deterioration.
-
- Enzyme Modified Subsurface Membrane Waterproofing (EMSMW) provides long-lasting waterproofing for below-grade, and interior surfaces, preventing water infiltration that can lead to deterioration, efflorescence, and structural damage.
- It penetrates the concrete in below-grade, and interior surfaces chemically bond with its minerals, creating an impermeable barrier that blocks water from seeping into the structure.
- This deep chemical bond is highly resistant to moisture and environmental exposure, preventing water-related failures such as cracking, spalling, and freeze-thaw damage—common issues in under ground structures.
- EMSMW has an auto-regenerative property that activates when minor cracks or voids form, reacting with water to seal them and prevent further damage.
- This auto-regenerative ability ensures long-term structural integrity and protection, lasting for decades.
- EMSMW stands out from traditional methods due to its chemical bonding and auto-regenerative capabilities, making it an ideal choice for interior surfaces and below-grade applications where protection from moisture ingress and hydrostatic pressure is critical.
